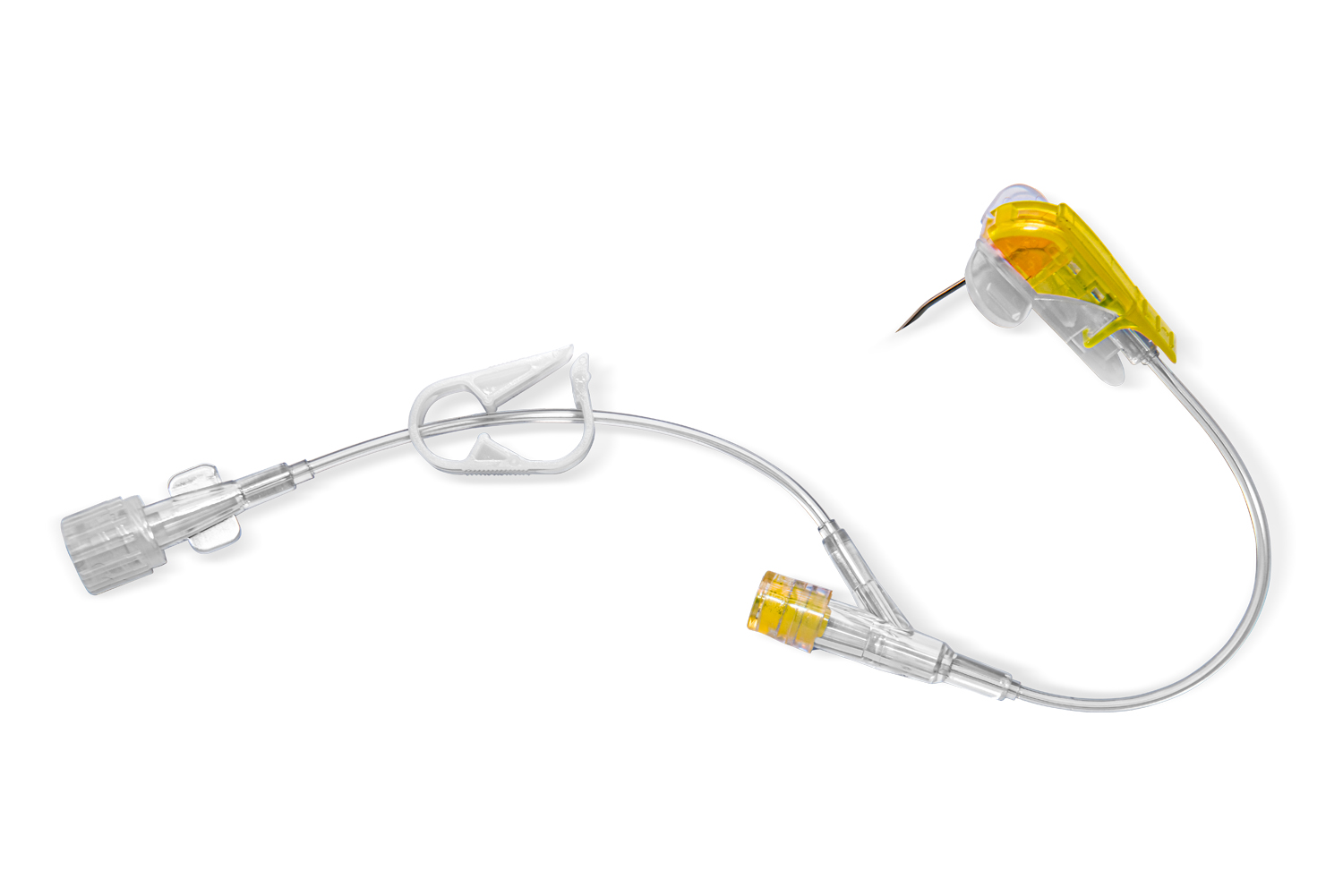

SAFETOUCH Huber needle set
Nipro's SAFETOUCH Huber needle infusion set combines high quality needle with an easy-to-activate safety device.
With our Safetouch needle, experience enhanced safety without changing your technique of needle puncturing.
- Intended for the infusion of drug solutions into or blood sampling from a reservoir implanted in the body
- Non-coring needle
- Needle fixed at 90° angle
- Fixed colored wings
- Available with or without Y-site
-
Tubing lengths of 200 mm (with Y-site) and 200 or 450 mm (without Y-site)
-
Available in 19, 20 and 22 G
-
Available in 19, 25, and 38 mm ( ¾, 1, 1½ inches respectively)
Specifications
|
Reference code |
Description |
Needle |
Needle length (mm) |
Tube length volume (mm) |
Y-site |
Priming volume (ml) |
|
HCNS-SF-1919-Y-ET |
SF Huber coreless Ndl Set 19G 19 mm Y |
19 |
19 |
200 |
Yes |
0,6 |
|
HCNS-SF-1925-Y-ET |
SF Huber coreless Ndl Set 19G 25 mm Y |
19 |
25 |
200 |
Yes |
0,6 |
|
HCNS-SF-2019-Y-ET |
SF Huber coreless Ndl Set 20G 19 mm Y |
20 |
19 |
200 |
Yes |
0,6 |
|
HCNS-SF-2025-Y-ET |
SF Huber coreless Ndl Set 20G 25 mm Y |
20 |
25 |
200 |
Yes |
0,6 |
|
HCNS-SF-2038-Y-ET |
SF Huber coreless Ndl Set 20G 38 mm Y |
20 |
38 |
200 |
Yes |
0,6 |
|
HCNS-SF-2219-Y-ET |
SF Huber coreless Ndl Set 22G 19 mm Y |
22 |
19 |
200 |
Yes |
0,6 |
|
HCNS-SF-2225-Y-ET |
SF Huber coreless Ndl Set 22G 25 mm Y |
22 |
25 |
200 |
Yes |
0,6 |
|
HCNS-SF-2238-Y-ET |
SF Huber coreless Ndl Set 22G 38 mm Y |
22 |
38 |
200 |
Yes |
0,6 |
|
HCNS-SF-1919-20-ET |
SF Huber coreless Ndl Set 19G 19 mm 20cm |
19 |
19 |
200* |
No |
0,3 |
|
HCNS-SF-1925-20-ET |
SF Huber coreless Ndl Set 19G 25 mm 20cm |
19 |
25 |
200* |
No |
0,3 |
| HCNS-SF-1938-20-ET |
SF Huber coreless Ndl Set 19G 38 mm 20 cm |
19 |
38 | 200* | No | 0,3 |
|
HCNS-SF-2019-20-ET |
SF Huber coreless Ndl Set 20G 19 mm 20 cm |
20 |
19 |
200* |
No |
0,3 |
|
HCNS-SF-2025-20-ET |
SF Huber coreless Ndl Set 20G 25 mm 20 cm |
20 |
25 |
200* |
No |
0,3 |
|
HCNS-SF-2038-20-ET |
SF Huber coreless Ndl Set 20G 38 mm 20 cm |
20 |
38 |
200* |
No |
0,3 |
|
HCNS-SF-2219-20-ET |
SF Huber coreless Ndl Set 22G 19 mm 20 cm |
22 |
19 |
200* |
No |
0,3 |
|
HCNS-SF-2225-20-ET |
SF Huber coreless Ndl Set 22G 25 mm 20 cm |
22 |
25 |
200* |
No |
0,3 |
|
HCNS-SF-2238-20-ET |
SF Huber coreless Ndl Set 22G 38 mm 20 cm |
22 |
38 |
200* |
No |
0,3 |
*Can be produced also in 450 mm on demand
